Film Winding Paper Reel Stacker 2.5kw 1000-4500mm Load Capacity 100-1500kg

Brand Name : KAD

Model Number : BM050CG-16

Certification : CE

Place of Origin : China

MOQ : 1

Price : US$8000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000units/year

Delivery Time : 25 days

Packaging Details : Iron pallet

Load capacity : 100-1500kg

Load height : 1000-4500mm

Applicated film diameter : 500-1500mm

Load center : 500mm

Operation way : Electric moving,lifting,sealing

Turning radius : 1520mm

Aisle width : 1900mm

Lenth : 1900mm

Width : 1460mm

Height : 2080mm

Running speed(load/unload) : 4.3/4.5km/h

Hoisting speed(load/unload) : 110/160mm/s

Descent speed(load/unload) : 150/130mm/s

Climbing capability (load/unload) : 5/8%

Braking mode : Electronic brake

Tyres,material : Pu

Hydraulic motor : 2.5kw

Battery : 24V/210A

Weight : 1400-1600kg

Contact Now

Film winding stacker to tighten the inner core of the film winding and paper roll stacker

Principle

The utility model relates to a tension structure applied to a film winding machine, which includes a fixed shaft, a tension component set on the fixed shaft and a lock nut installed on the fixed shaft. The utility model has the advantages of simple operation, compact structure, fast tightening, effectively improving the tension force and maintaining large torque, helping to improve the stability of the film sealing or tearing, improving the working efficiency, and being able to adapt to the film winding with different inner diameters.

We applicate this roll film tensioning structure to a electric stacker,All operations are electric, greatly improving work efficiency.

Operation video

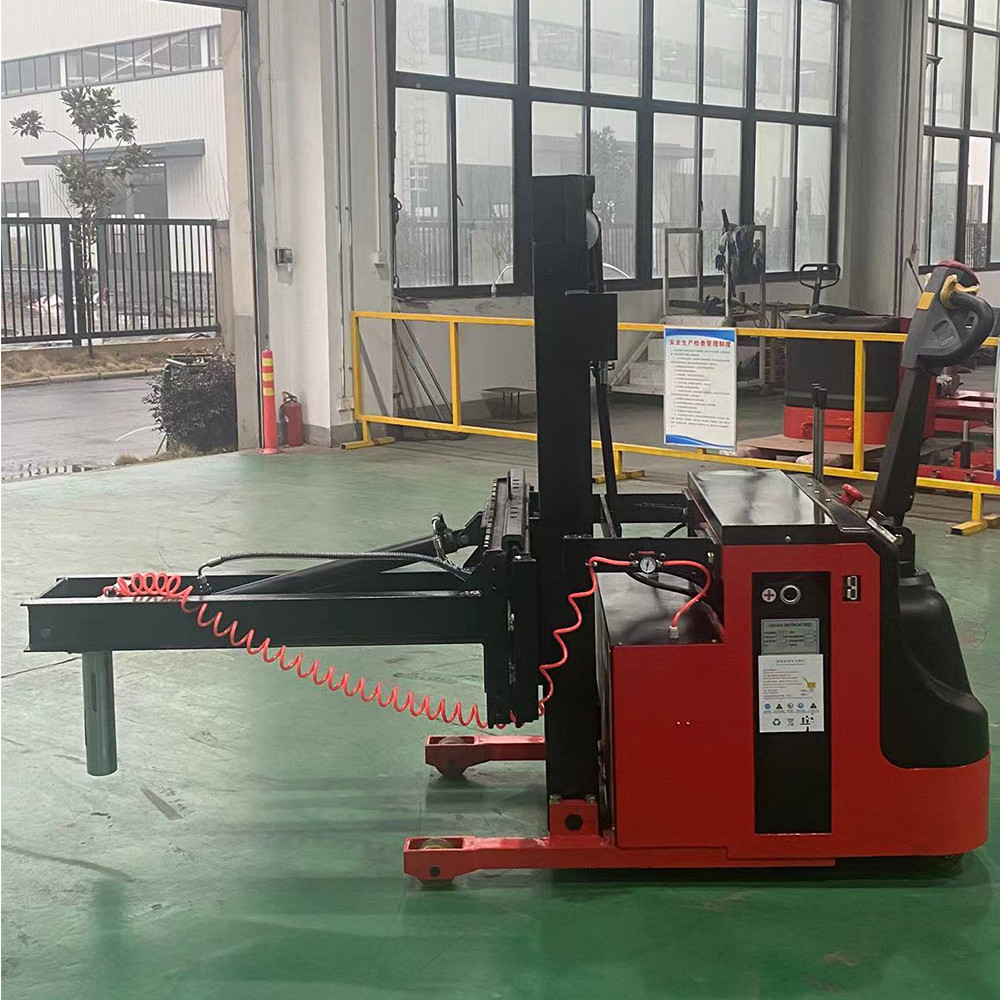

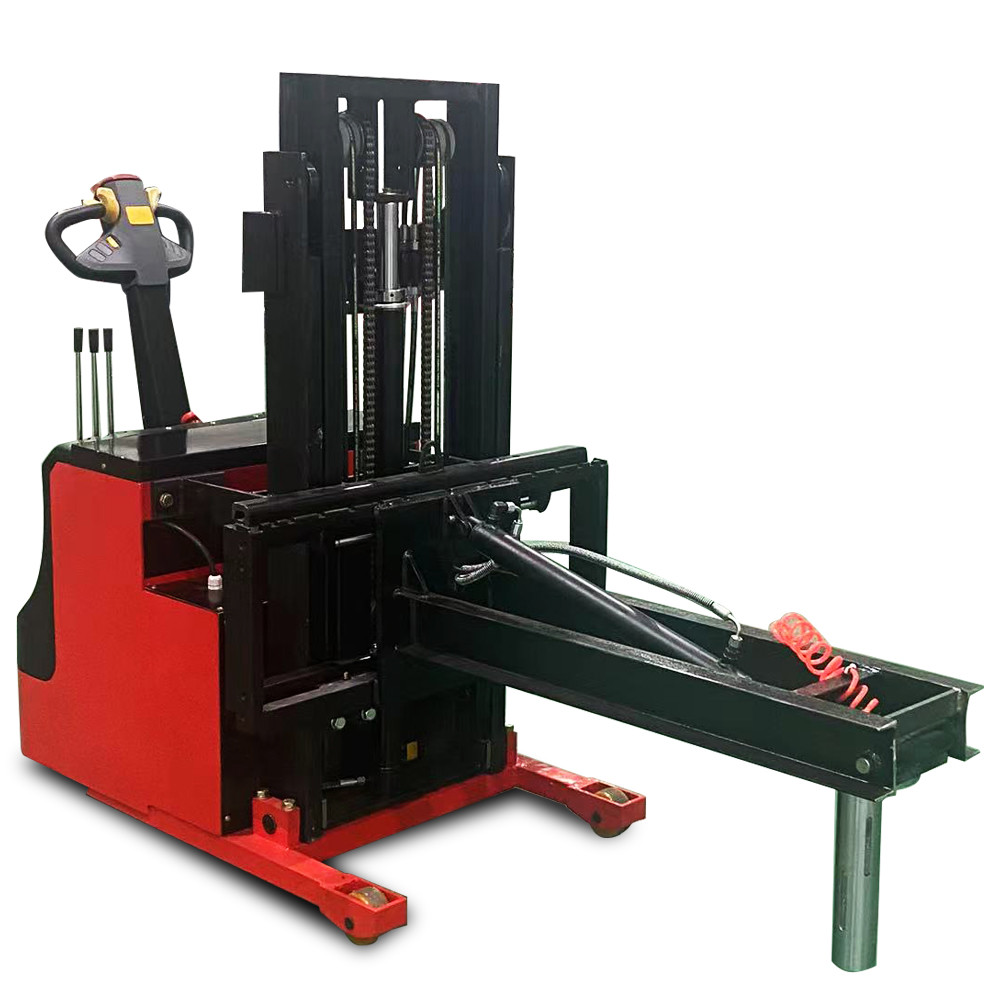

Pictures

Film Winding Paper Reel Stacker 2.5kw 1000-4500mm Load Capacity 100-1500kg

Parameters

Power source		Battery
Rated load	kg	700kg/customized
Load center	mm	500
Operation way		Standing operation,electric lifting,electric gripper,electric rotating,electric moving
Turning radius	mm	1050
Aisle width	mm	1900
Length	mm	1500
Width	mm	760
Height	mm	2100/customized
Mast		1-stage mast
Adjustable extent of clamp	mm	200~1250
Max height of forks	mm	1500
Min height of forks	mm	200
Rotation angle	°	90°(left and right)/360 degree
Hoisting speed(load/unload)	mm/s	110/160
Descent speed(load/unload)	mm/s	150/130
Climbing capability	%	3,5
Braking mode		Wheel brake
Tyres,material		Nylon
Load wheel dimensions	mm	85*80,2pcs
Steering wheel dimensions	mm	180*50,2pcs
Hydraulic motor	kw	24v/2.2kw
Battery	v/ah	24/210
Weight	kg	1100
